The hardware

The CircuitKid Kit

Every part for the whole course and all 5 capstone projects, shipped to your door in one box. Sorted into labeled cases before it goes out, so day one is not a mystery bag of parts.

Sign up for a kit →See what you'll build

Ages 6–13No experience neededReusable forever

Arduino UNO R4 wired to a breadboard and an LCD screen showing a message

Lesson 1, finished

A look inside the box

Real photos of the actual kit on my desk. Not stock images, not renders. What shows up is what you see here.

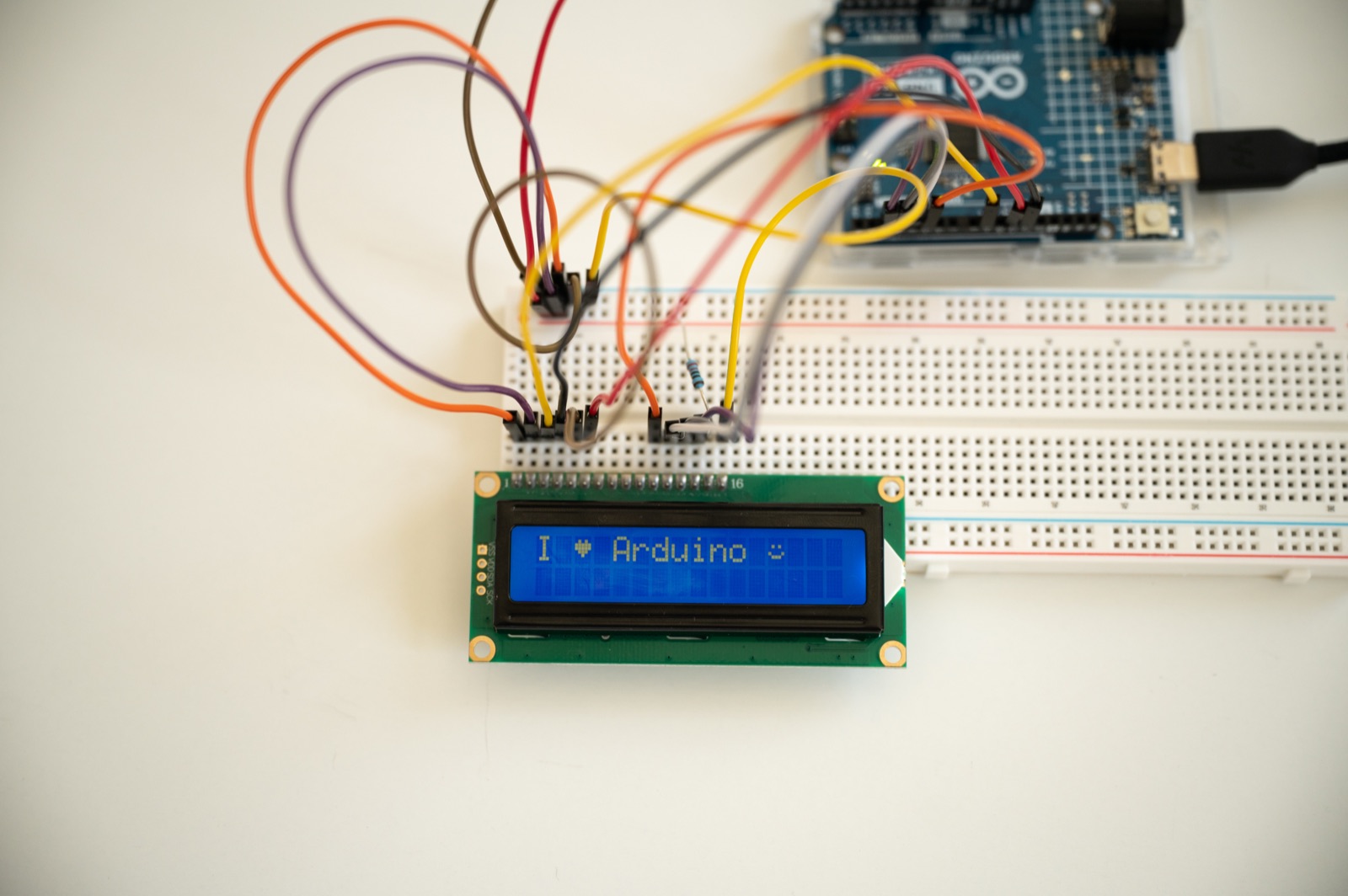

  • Close-up of the LCD1602 display showing 'I heart Arduino'

    It really says hi

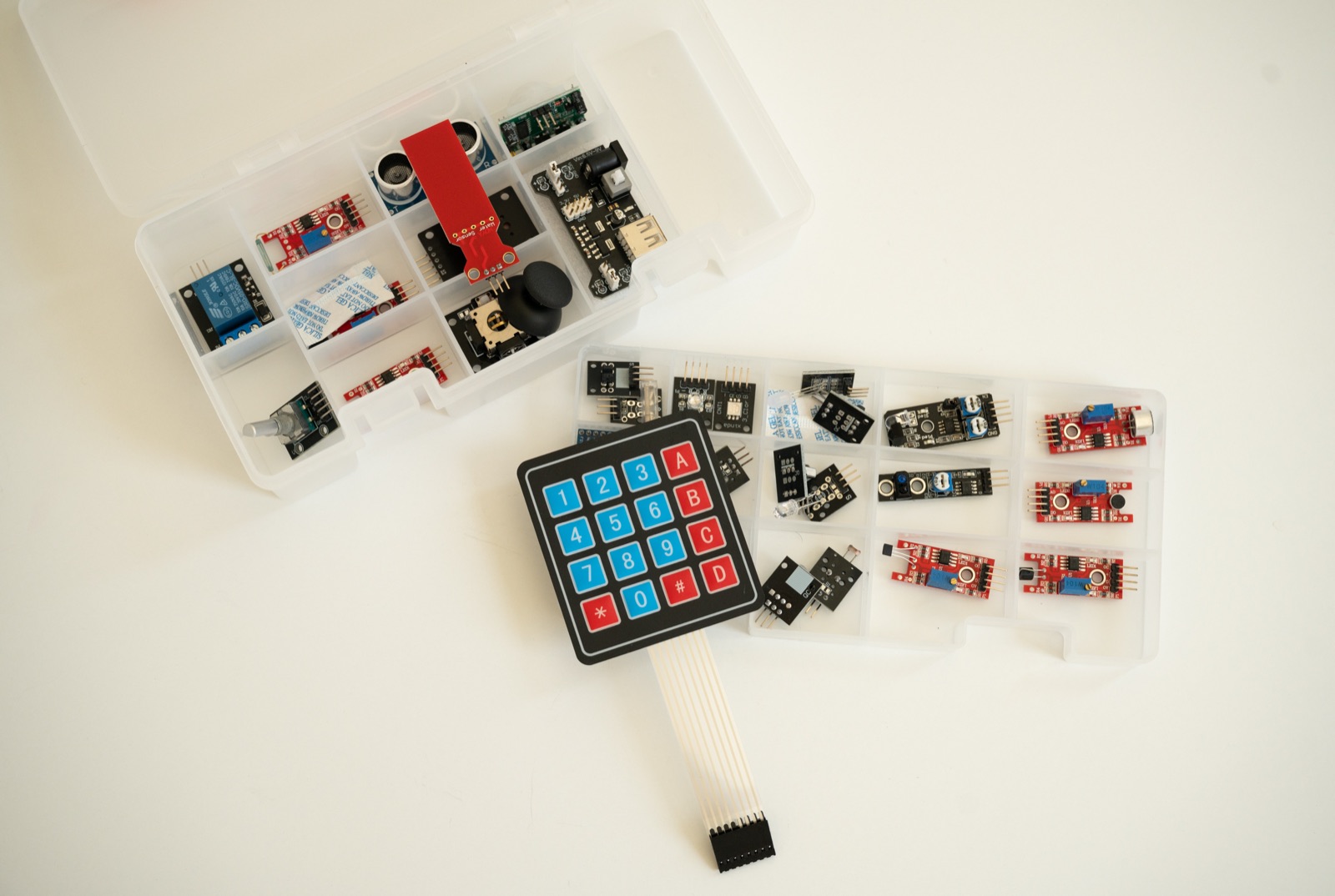

  • Sorted cases of sensor modules and a membrane keypad included in the kit

    Everything, organized

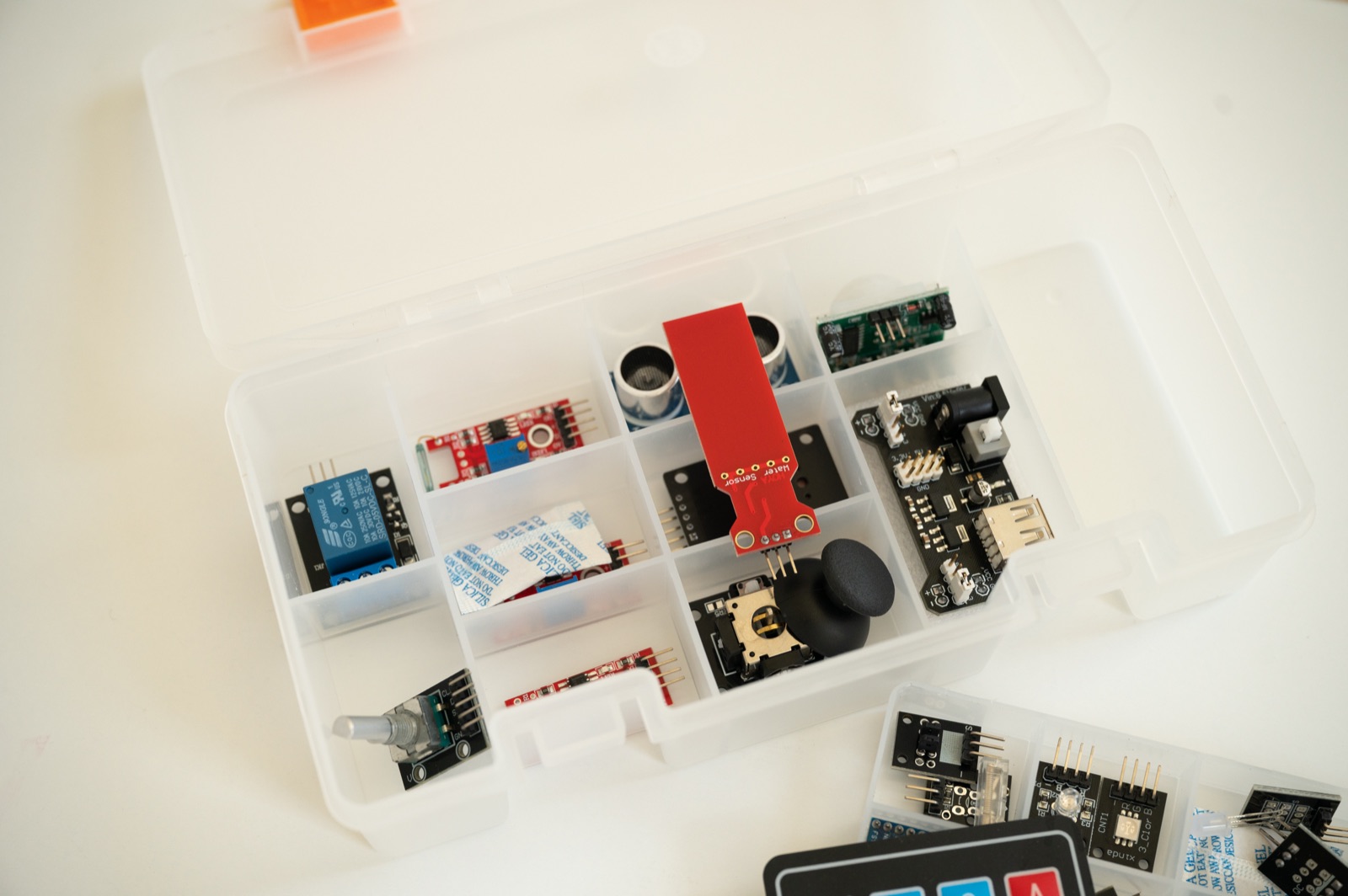

  • Relay, joystick, ultrasonic sensor, water sensor and power supply modules

    Joysticks & gadgets

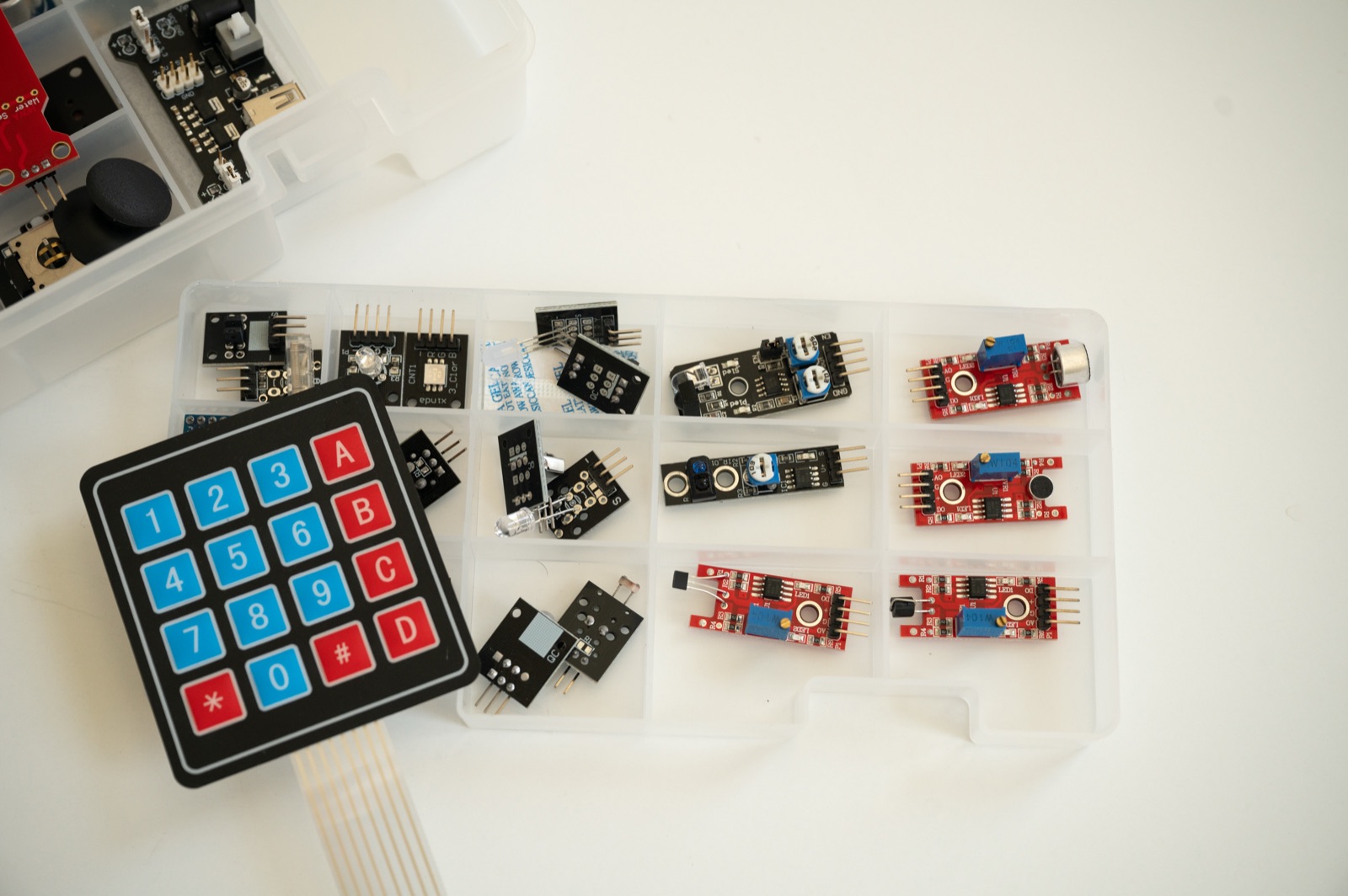

  • Case of sensor modules including sound, light, temperature and tracking sensors

    30+ sensor modules

  • 2WD robot car chassis with four wheels, motors and hardware

    Build your own car

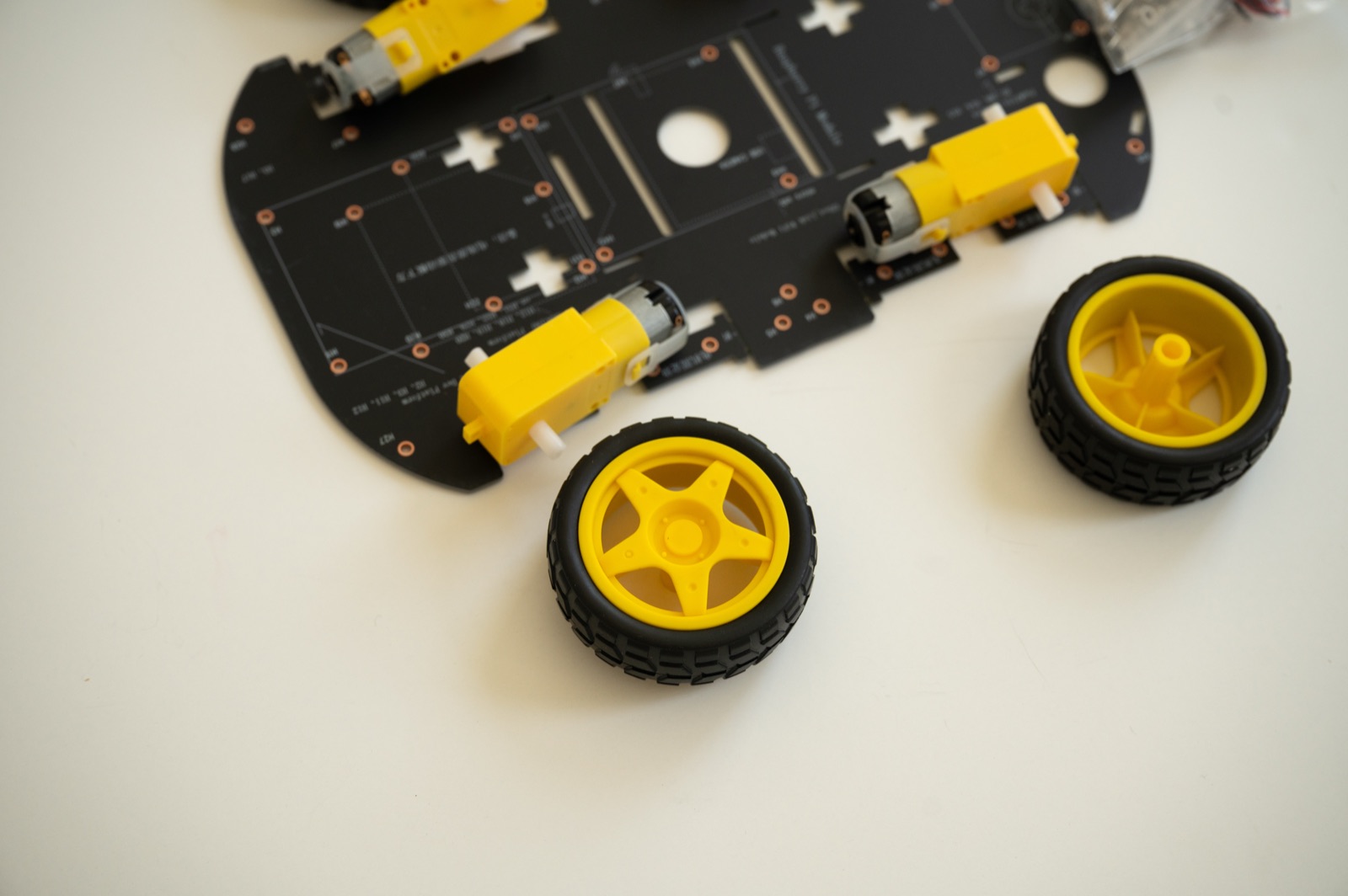

  • Close-up of the robot car wheels and DC gear motors

    Zoom zoom

The short list

What you get

If you only read five lines about the kit, read these.

  • Arduino UNO R4 Minima
  • 830-point breadboard and wires
  • LCD and OLED screens
  • 30+ snap-in sensor modules
  • 2WD robot car chassis

Every single part

No upgrade packs. Nothing sold separately halfway through the course. This is the whole bill of materials.

9 labeled groups · 46 listed parts

  • Core Controller

    • 1 × Arduino UNO R4 Minima

  • Prototyping & Basic Electronics

    • 1 × Breadboard (830 point)
    • 1 × Jumper wire set
    • 18 × Assorted LEDs
    • 100 × Resistors
    • 1 × Button module (plus extra push buttons)
    • 2 × Buzzer modules (active + passive)

  • Control Modules

    • 1 × Joystick module
    • 1 × Rotary encoder module
    • 1 × Membrane switch module
    • 1 × IR receiver module
    • 1 × IR emission module
    • 1 × Relay module

  • Sensor Modules

    • 1 × Ultrasonic sensor module
    • 1 × PIR motion sensor (HC-SR501)
    • 1 × Flame sensor module
    • 1 × Linear hall sensor module
    • 1 × Metal touch sensor module
    • 1 × Digital temperature sensor module
    • 1 × 18B20 temperature sensor module
    • 1 × Photo-resistor (light sensor) module
    • 1 × Temperature & humidity sensor module
    • 1 × GY-521 accelerometer / gyroscope module
    • 1 × Photo-interrupter module
    • 1 × Tap sensor module
    • 1 × Avoidance sensor module
    • 1 × Tracking sensor module
    • 1 × Water level sensor module
    • 1 × Shake sensor module
    • 1 × Tilt switch module

  • Sound & Light Modules

    • 1 × Big sound sensor module
    • 1 × Small sound sensor module
    • 1 × RGB LED module
    • 1 × SMD RGB module
    • 1 × Two-tone color module
    • 1 × 7-color flash module

  • Output & Actuation

    • 1 × Servo motor
    • 2 × DC motors
    • 2 × H-bridge motor driver modules (L298N)

  • Special Function Modules

    • 1 × Laser emission module
    • 1 × Magnetic spring module
    • 1 × Power supply module
    • 1 × DS1307 real-time clock module

  • Display

    • 1 × LCD1602 module (with pin header)
    • 1 × OLED display module

  • Mechanical System

    • 1 × 2WD robot chassis kit (with wheels)

What you'll need at home

Not in the box
  • A Windows or Mac computer to run the Arduino IDE. It's a free download, and Lesson 1 walks through installing it.
  • 4 × AA batteries for the motor and robot car projects.

That's genuinely it.

Ready to get a kit?

Fill out the sign-up form. You get a reply with pricing and shipping, plus what to do to start Lesson 1. That form is how you request a kit. There is no checkout to rush through.

Open the sign-up form →

Questions first? Email nayanrgarg@gmail.com or call (720) 795-2998.
